Atala E-SPACE 8.4 28″ 2

E-SPACE 8.4 28″



Electric Kit

EcoLogic 45Nm/Speed Smart


Blue Navy/Flat Grey Matt



Mechanical specifications

Telaio Alu. 700c, easy access, integrated battery, integrated HT, disc brake, internal cables
Forcella Suntour NEX 700c, alu with alu crown, 50mm o Zoom 187D, 29”, 65mm, Coil White
Serie sterzo FSA integrated 1”1/8
Guarnitura Byte alu 42T cartridge
Cambio Shimano Altus RD-M310
Comandi Hydraulic disk, Rotor 160 mm, with brake lever switch
Freni Shimano Tourney SL-RS45 RevoShift, 8s
Ruota Libera DNP 8s 13-28
Pedali Resin antislip
Mozzi Shimano quick release front, motor on rear, 36h, INT
Cerchi Beretta 700c, double wall w/eylets, 36h, disc
Attacco manubrio Byte alu over, ahead, adjustable
Piega manubrio Byte alu over
Reggisella Byte alu with clamp, 27,2mm
Sella Selle Royal Aurorae w/elastomer
Coperture Byte Trento 700x45c, with reflecting line
Parafanghi Single stay speedy
Copricatena Plastic, L type
Portapacchi Rear alu 14mm with spring, 25kg load
Luci esterne Axa front (15 lux) and rear LED, controlled by display
Taglia 45
Colore Blue Navy/Flat Grey Matt
Note kickstand Ursus adjustable, bell

Elettrical Specifications

Coppia massima 45 Nm
Tipo sensore Speed sensor w/12 pulses
Batteria 504
Tipo caricabatteria 2A Europlug
Tempo di ricarica 100%: 8h16 / 80%: 6h16m
Velocità max assistita 25km/h
Display Atala A10 LCD Smart CAN, with remote control
Potenza 5 levels, Speed/Torque adjust
Altre funzioni Soft start: 0 - 6km/h, with no pedalingExternal light controlSpeed informationBattery information

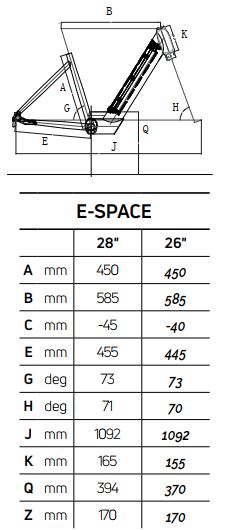

Atala E-SPACE 8.4 28″ geometrie Atala E-SPACE 8.4 28″ geometrie
