Atala Club 4

Club

Brand

Atala

Electric Kit

Atala AM80 Agile

Colors

Ultralight/Neon Red Matt

Size

33 cm

Mechanical specifications

Frame Alu 20”, foldable, with integrated battery
Fork Hi-Ten Tig 26”
Steering Integrated 1”1/8, threaded, with cap
Crankset AM80 alu 152mm, FSA 44T
Change Shimano Tourney RD-TY500
Commands Shimano Tourney SL-RS35 RevoShift, 7s
Brakes Shimano BR-MT200 hydraulic disc, Rotor 160 mm INT
Sprocket set Shimano HG200 7s 12-32
Pedals Resin foldable
Hubs Shimano TX505 32h, CL, quick release
Circles Rodi 20", double wall w/eylets, 32h, disc
Handlebar mount Alu, foldable, adjustable
Handlebar fold Alu, 30mm rise
Seat support Alu with clamp, 34,9mm, telescopic
Seat Selle Royal Lancia
Covers Schwalbe Big Apple 20”x2,00”, with reflecting line, puncture proof
Fenders Single stay safety-clip
Chain guard Plastic, L type
Rack Alu rear carrier with spring
External lights Axa front (15 lux) and rear LED, controlled by display
Size 33 cm
Color Ultralight/Neon Red Matt

Elettrical Specifications

Maximum torque 80 Nm
Sensor type Torque
Battery 313
Autonomy level1: up to 100kmlevel2: up to 65kmlevel3: up to 54kmlevel4: up to 50kmlevel5: up to 42km
Battery charger type 2 A
Charger time 100%: 4h40m / 80%: 3h30m
Assisted max speed 25 km/h
Display Atala A15 LED CAN, Power +/-
Power 5 levels, Power adjustlevel1: 50%level2: 100%level3: 150%level4: 200%level5: 250%

Colours, sizes and codes

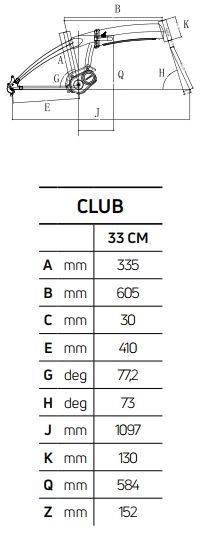

Geometry


Atala Club geometrie Atala Club geometrie
