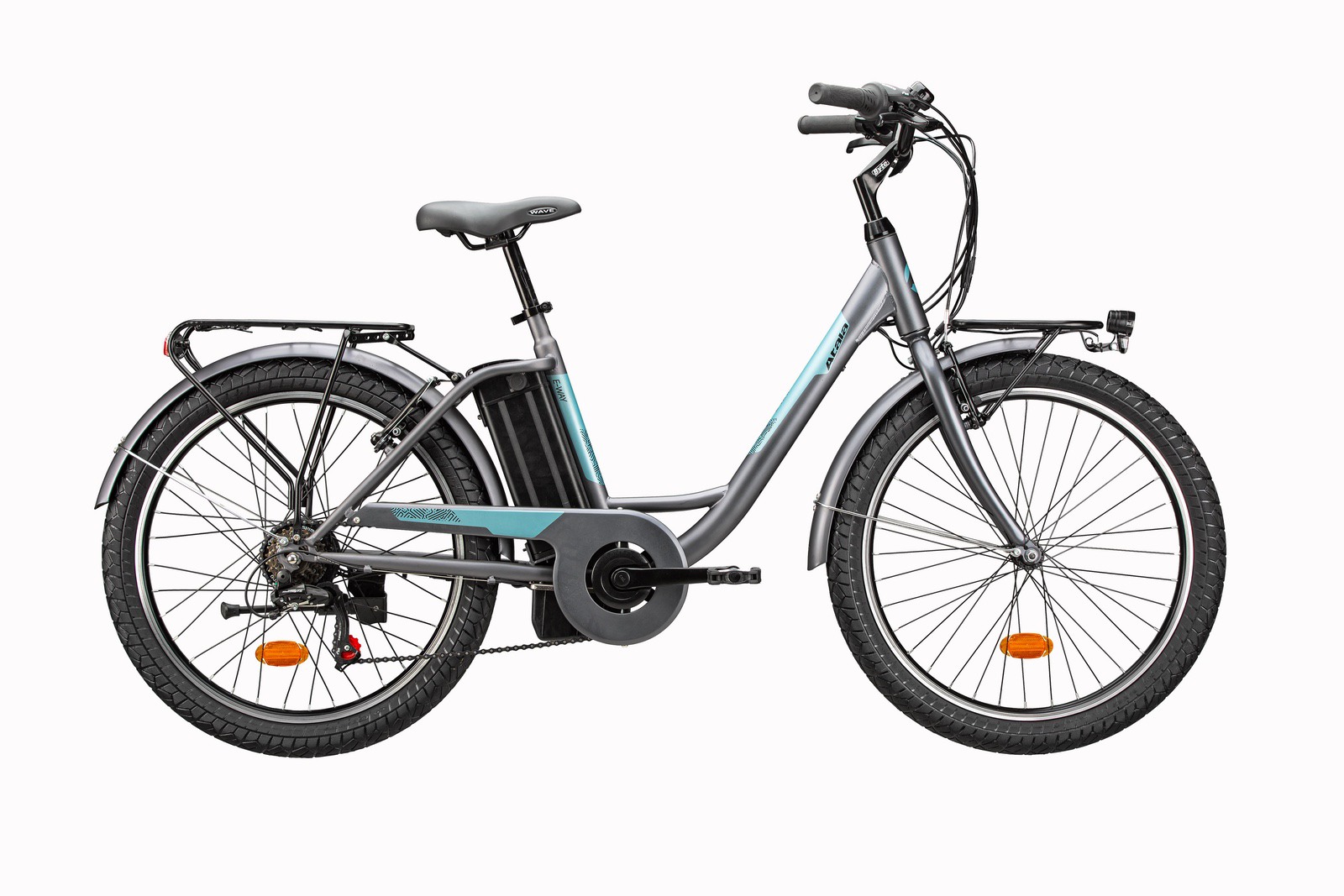

E-WAY 24+

EcoLogic 35Nm/Speed

Anthracite matt

Telaio	Hi-Ten Tig 24", easy access, internal cables
Forcella	Hi-Ten Tig 24”
Serie sterzo	Integrated 1”1/8, threaded, with cap
Guarnitura	Byte steel 42T cartridge, with cap
Cambio	Shimano Tourney RD-TZ500 / LT
Comandi	Shimano Tourney SL-RS36 RevoShift, 6s / LT 6s
Freni	Promax alu, Cruiser V-Brake, E-Bile pads with brake lever switch
Pacco pignoni	Shimano Tourney 6s 14-28 / LT
Pedali	Resin City
Mozzi	Alu 36h, Shimano front, motor on rear
Cerchi	Rodi 24" 25c alu, double wall w/eylets, 36h
Attacco manubrio	Alu
Piega manubrio	Byte steel City, 600mm, rise 60mm
Reggisella	Alu, 25,4mm
Sella	Selle Royal Wave
Coperture	CST 24”x2,40” City
Parafanghi	Steel painted
Copricatena	Steel painted, L type
Portapacchi	Rear steel 10mm, 25kg load / front by tube
Luci esterne	Axa front (15 lux) and rear LED, controlled by display
Taglia	43
Colore	Anthracite matt
Note	kickstand on CS, bell, wheel reflectors

Coppia massima	35Nm
Tipo sensore	Speed sensor w/12 pulses
Batteria	360
Tipo caricabatteria	2A Europlug
Tempo di ricarica	100%: 6h4m / 80%: 4h27m
Velocità max assistita	25km/h
Display	Atala A15 LED UART
Potenza	5 levels, Speed/Torque adjust
Altre funzioni	Walking assistance External light control
