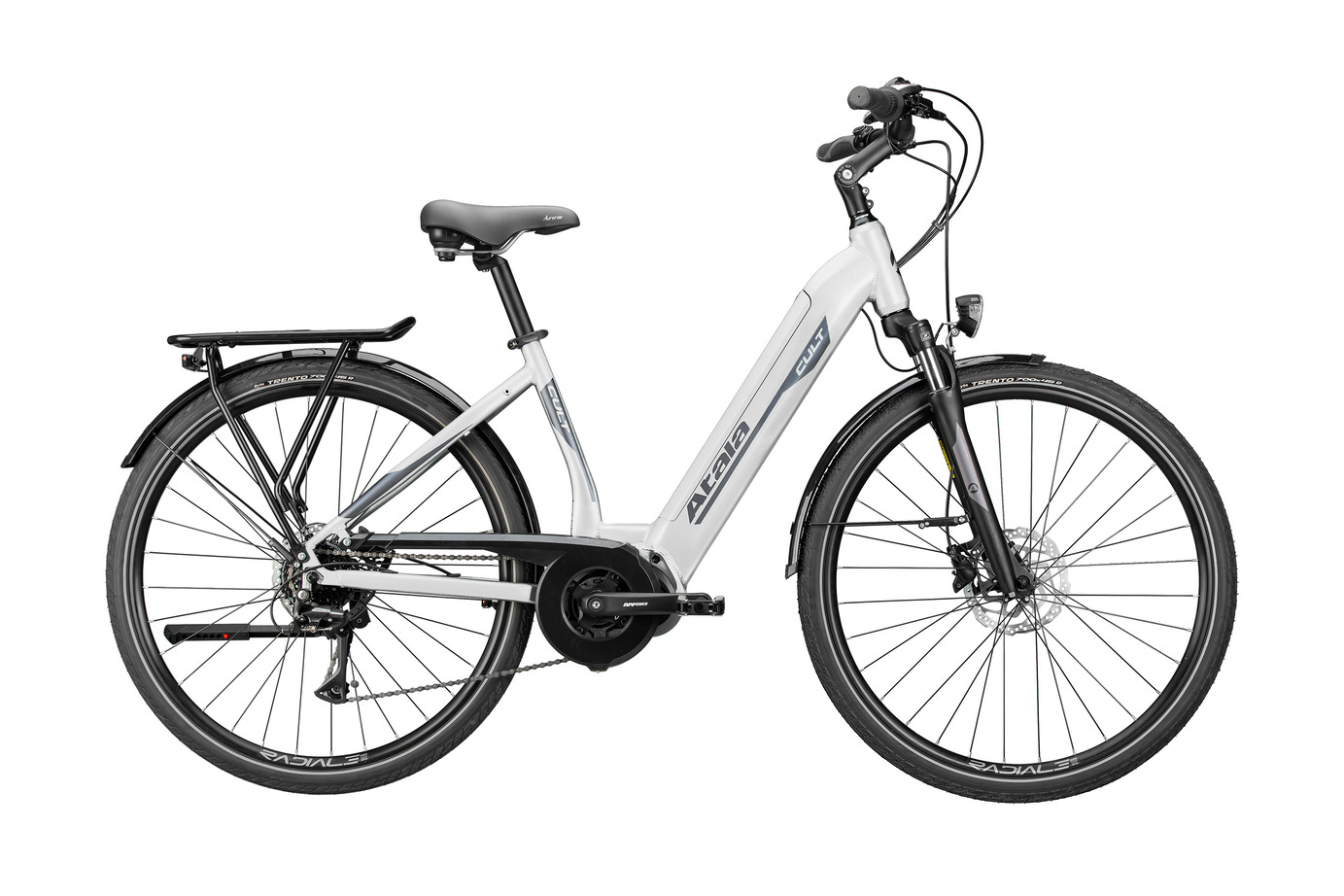

CULT 7.4 28″

AM80 Agile GEN2

Ice White

Telaio	Alu. Hydroformed 700c, easy access, internal battery, internal cables
Forcella	Suntour NEX 700c, alu with alu crown, 63mm travel
Serie sterzo	FSA integrated ahead 1”1/8
Guarnitura	Alu 170mm, Miche 38T
Cambio	Shimano Altus RD-M310
Comandi	Shimano Tourney SL-RV400 RevoShift, 7s
Freni	Shimano BR-MT200 hydraulic disc, Rotor 160 mm CL
Pacco pignoni	Shimano HG200 7s 12-32
Pedali	Resin antislip
Mozzi	Shimano TX505 32h, CL, quick release
Cerchi	Radiale E25 700c, double wall. 32h, disc
Attacco manubrio	Alu over, ahead, adjustable
Piega manubrio	Alu over TKK, 640mm, rise 25mm
Reggisella	Alu with clamp, 30,9mm
Sella	Selle Royal Aurorae w/elastomer
Coperture	Byte Trento 700x45c, with reflecting line
Parafanghi	Single stay speedy, edge
Copricatena	L type, edge
Portapacchi	Rear alu 14mm with spring, 25kg load
Luci esterne	Axa front (15 lux) and rear LED, controlled by display
Taglia	45
Colore	Ice White
Note	kickstand Ursus adjustable rear, keyring

Coppia massima	100 Nm
Tipo sensore	Torque
Batteria	522
Tipo caricabatteria	2A Europlug
Tempo di ricarica	100%: 7h:45m / 80%: 5h48m
Velocità max assistita	25 km/h
Display	Atala A23 LCD CAN, side
Potenza	5 levels, Power adjustlevel1: 50%level2: 100%level3: 150%level4: 200%level5: 250%
Altre funzioni	Walking assistance External light control Speed information Power information Battery information
