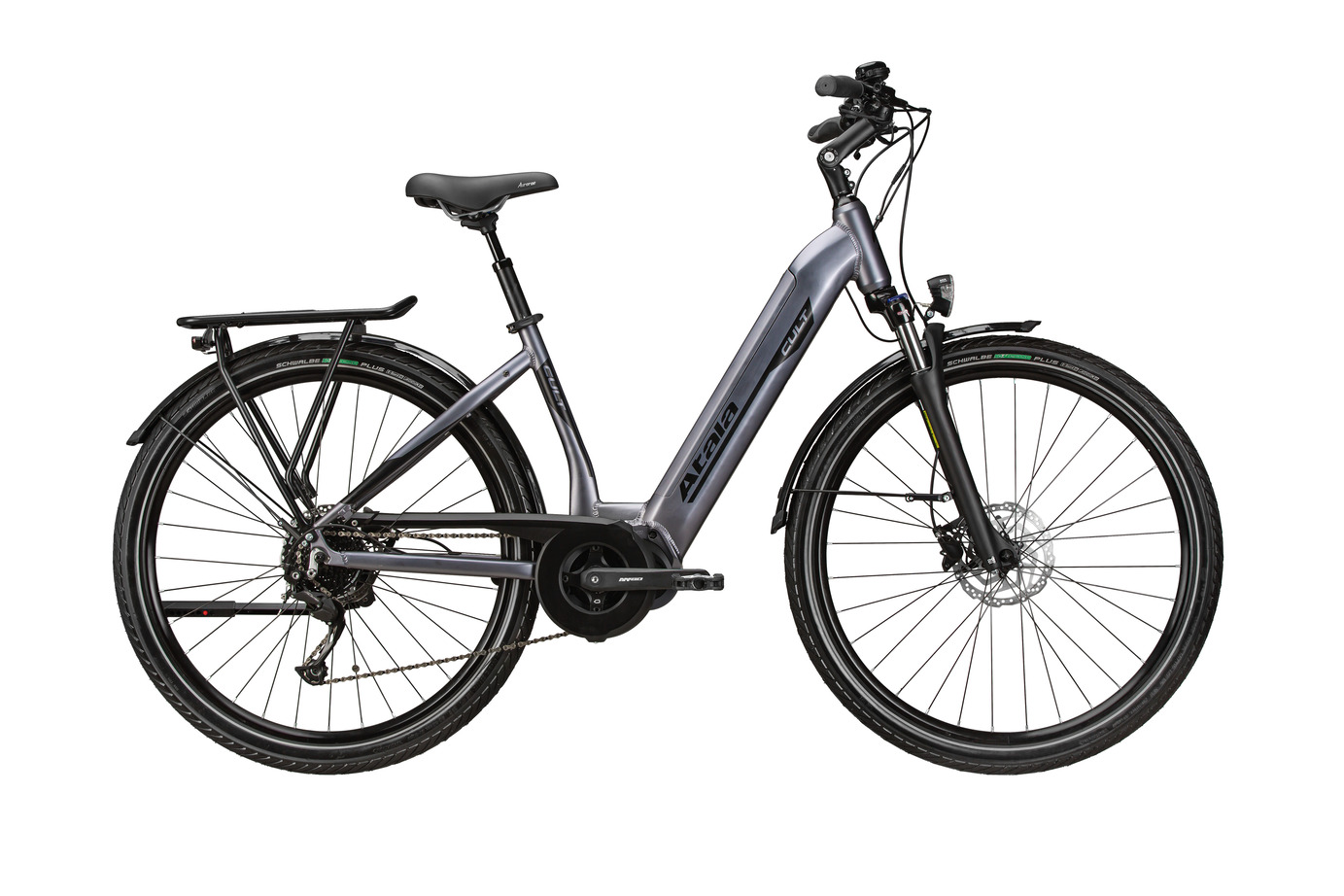

CULT 9.4 28″

AM80 Agile GEN2

Anthracite Matt

Telaio	Alu. Hydroformed 700c, easy access, internal battery, internal cables
Forcella	Suntour NVX30 NLO 700c, alu with alu crown,63mm travel, 30mm stanchions, whith hydraulic lockout
Serie sterzo	FSA integrated ahead 1”1/8
Guarnitura	Alu 170mm, FSA 38T
Cambio	Shimano Alivio RD-M3100 / L-TWOO RD-V4009-L-2, 9s
Comandi	Shimano Alivio SL-M3100, 9s / L-TWOO SL-V4009-9W-2, 9s
Freni	Shimano BR-MT200 hydraulic disc, Rotor 180 mm CL
Pacco pignoni	Shimano HG200 9s 11-36 / L-TWOO CS-A5 9s 11-34
Pedali	Alu Comfort
Mozzi	Shimano TX505 32h, CL, quick release
Cerchi	Radiale E25 700c, double wall. 32h, disc
Attacco manubrio	Alu over, ahead, adjustable
Piega manubrio	Alu over TKK, 640mm, rise 25mm
Reggisella	Suspended 40mm, 30,9mm
Sella	Selle Royal Aurorae
Coperture	Schwalbe Energizer Plus 700x55c, with reflecting line, puncture proof
Parafanghi	Single stay speedy, edge
Copricatena	L type, edge
Portapacchi	Rear alu 14mm with spring, 25kg load
Luci esterne	Axa front (30 lux) and rear LED, controlled by display and twilight sensor
Taglia	45
Colore	Anthracite Matt
Note	kickstand Ursus adjustable rear, keyring

Coppia massima	100 Nm
Tipo sensore	Torque
Batteria	603
Tipo caricabatteria	2A Europlug
Tempo di ricarica	100%: 8h:52m / 80%: 6h42m
Velocità max assistita	25 km/h
Display	Atala A10 LCD CAN, glass/metal with remote control
Potenza	5 levels, Power adjustlevel1: 50%level2: 100%level3: 150%level4: 200%level5: 250%
Altre funzioni	Walking assistance External light control Speed information Battery information
