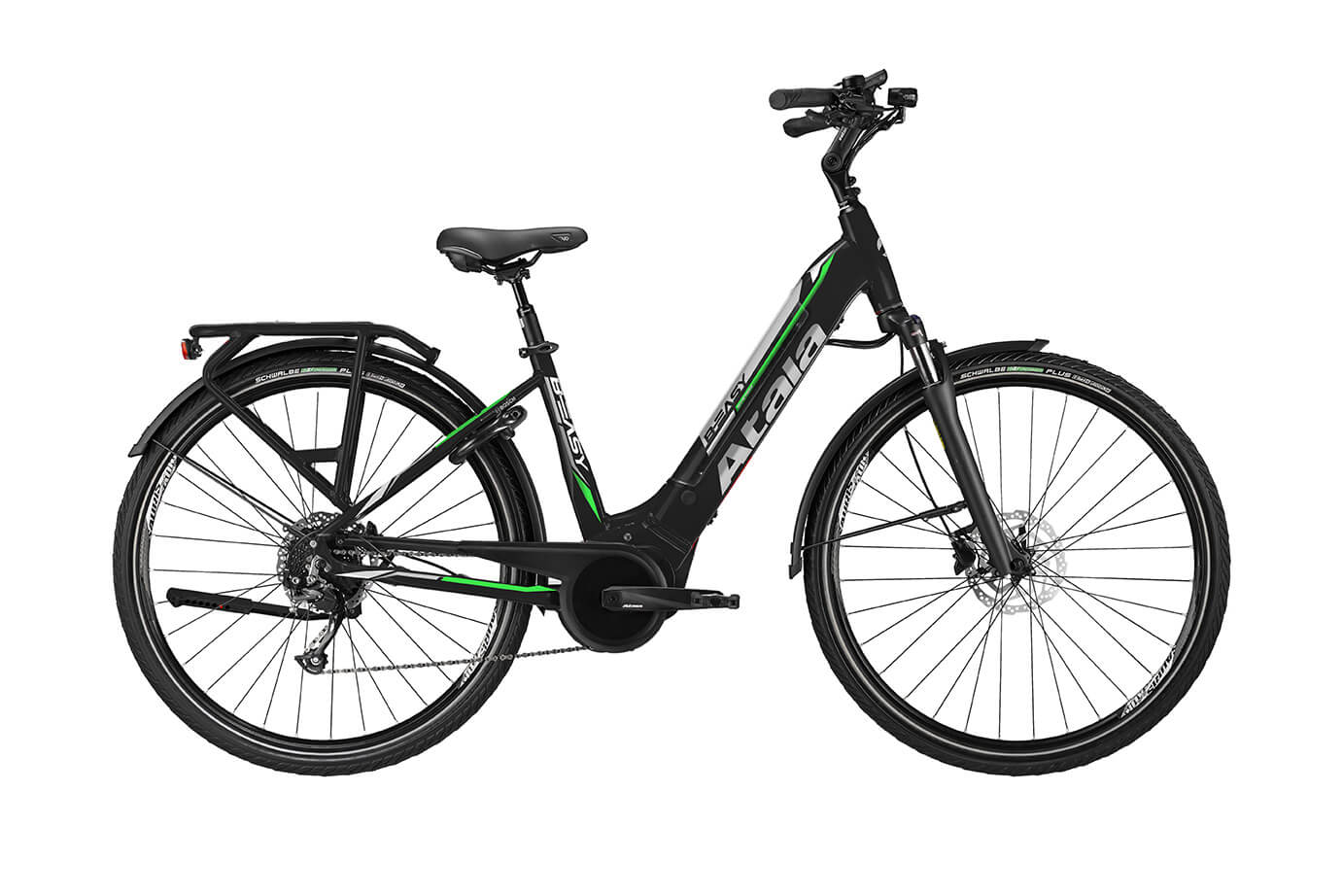

Atala B-Easy SL500 4

B-Easy SL500

Brand

Atala

Electric Kit

Bosch Performance Cruise

Colors

Black/Neon Green Matt

Size

45 – 50

Mechanical specifications

Frame Alu 700C, hydroformed, easy access, integrated battery, custom tubing, Internal routing, Forged interface
Fork Suntour NEX-E25, 63 mm, Coil, Lockout
Steering FSA No.10, semi-integrated, 1”1/8
Crankset Miranda Epsilon, Miranda 38T
Change Shimano Altus RD-M2000 SGS, Shadow
Commands Shimano Altus SL-M2010 Rapidfire, 9s
Brakes Shimano BR-MT200, Rotor SM-RT10 180 mm/180 mm
Sprocket set Shimano CS-HG200 9s 11/34
Pedals Alu TKK
Hubs Shimano TX505, CL, 32h
Circles Rodi Blackrock23, 23x622, 32h, eBike ready
Handlebar mount Satori UP3e, Internal routing, Bar bore 31,8 mm
Handlebar fold Satori Noirette City, 630 mm
Seat support Satori Harmony, Suspended, 31,6 mm
Seat Selle Royal Rio Plus
Covers Schwalbe Energizer Plus, Greenguard 3 mm, Reflex, 700x50
Fenders SKS A65R
Chain guard SKS Chainbow
Rack Alu, without brackets
External lights F: Axa CompactLine LED 35 LuxR: Axa BlueLine LED Lightguide
Size 45 – 50
Color Black/Neon Green Matt
Note Framelock Axa Victory

Elettrical Specifications

Maximum torque 50 Nm
Sensor type Torque
Battery 500
Battery charger type 2 A
Charger time Up to 7,5 hours
Assisted max speed 25 km/h
Display INTUVIA
Power Eco: 40 %Tour: 100 %Sport: 180 %Turbo: 270 %

Geometry


Atala B-Easy SL500 geometrie Atala B-Easy SL500 geometrie
