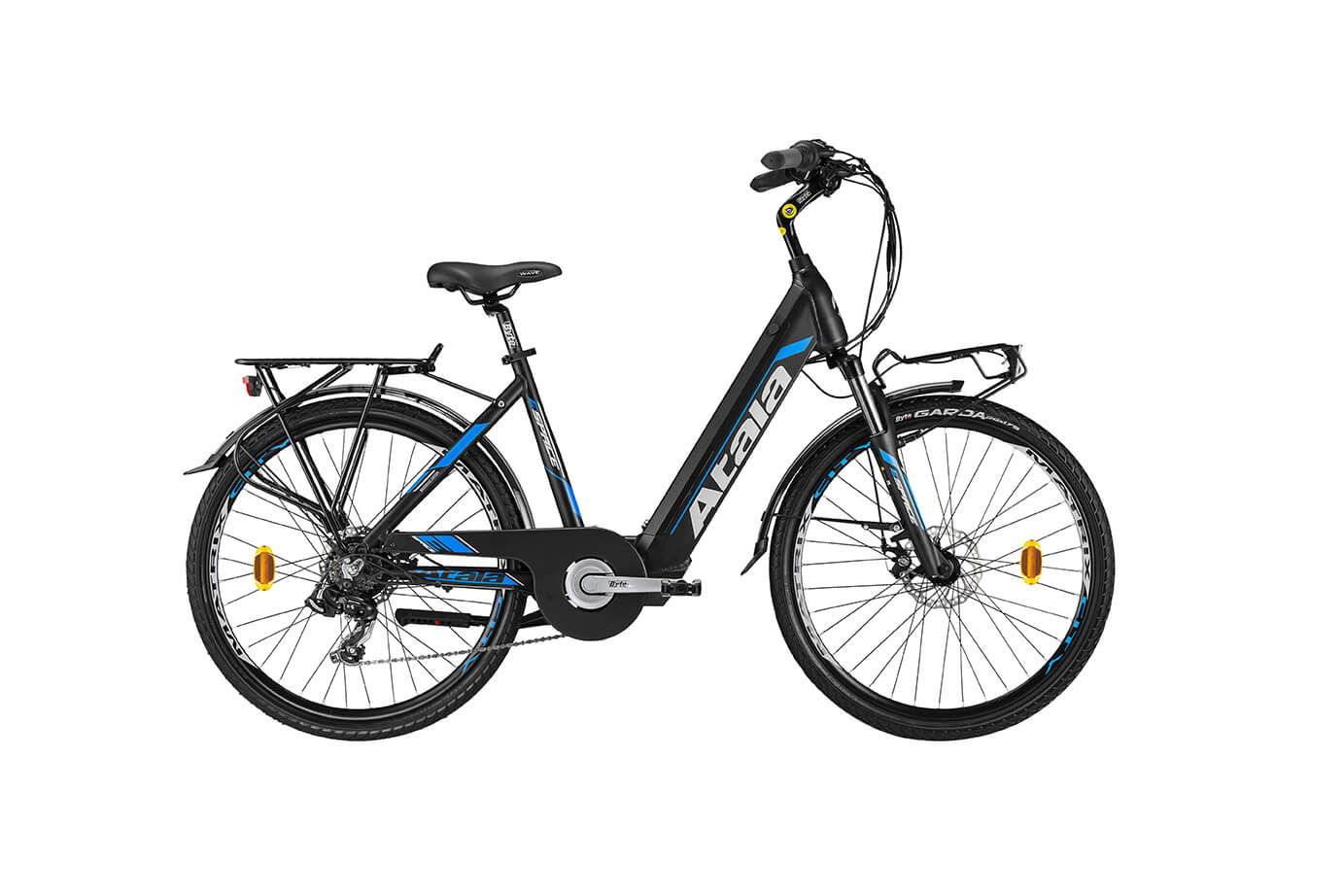

Atala E-Space EVO 4

E-Space EVO



Electric Kit

EcoLogic 45Nm/Speed Smart


Black/Light Blue Matt


45 cm

Mechanical specifications

Frame Alu. 26", easy access, integrated batery, integrated HT, disc brake
Fork HL CH-187 26", alu with alu crown, 40mm
Steering Integrated 1”1/8, threaded, with cap
Crankset Byte steel 42T cartridge, with cap
Change Shimano Tourney RD-TY500
Commands Shimano Tourney SL-RS35 RevoShift, 7s
Brakes Tektro Aries MD-M300, Mechanic disk, Rotor 160 mm, with brake lever switch
Free wheel Shimano Tourney 7s 14-28
Pedals Resin antislip
Hubs Alu 36h, quick release front, motor on rear, INT
Circles Beretta 26" alu, double wall w/eylets, 36h, disc
Handlebar mount Byte alu, adjustable
Handlebar fold Byte steel City
Seat support Byte alu with clamp, 27,2mm
Seat Selle Royal Wave
Covers Byte Garda 26”x1,75”
Fenders Single stay safety-clip
Chain guard Steel painted, L type
Rack Rear carrier with spring, 25kg / front carrier
External lights Front and rear LED, controlled by display and twilight sensor
Size 45 cm
Color Black/Light Blue Matt

Elettrical Specifications

Maximum torque 45Nm
Sensor type Speed sensor w/12 pulses
Battery 418
Autonomy level1: up to 100kmlevel2: up to 72kmlevel3: up to 58kmlevel4: up to 45kmlevel5: up to 37km
Battery charger type 2 A
Charger time 100%: 6h10m / 80%: 4h40m
Assisted max speed 25km/h
Display Atala A10 LCD Smart CAN, with remote control
Power 5 levels, Speed/Torque adjustlevel1: 11km, 27Nmlevel2: 14km, 30Nmlevel3: 17km, 33Nmlevel4: 21km, 39Nmlevel5: 25km, 45Nm

Colours, sizes and codes


Atala E-Space EVO geometrie Atala E-Space EVO geometrie
