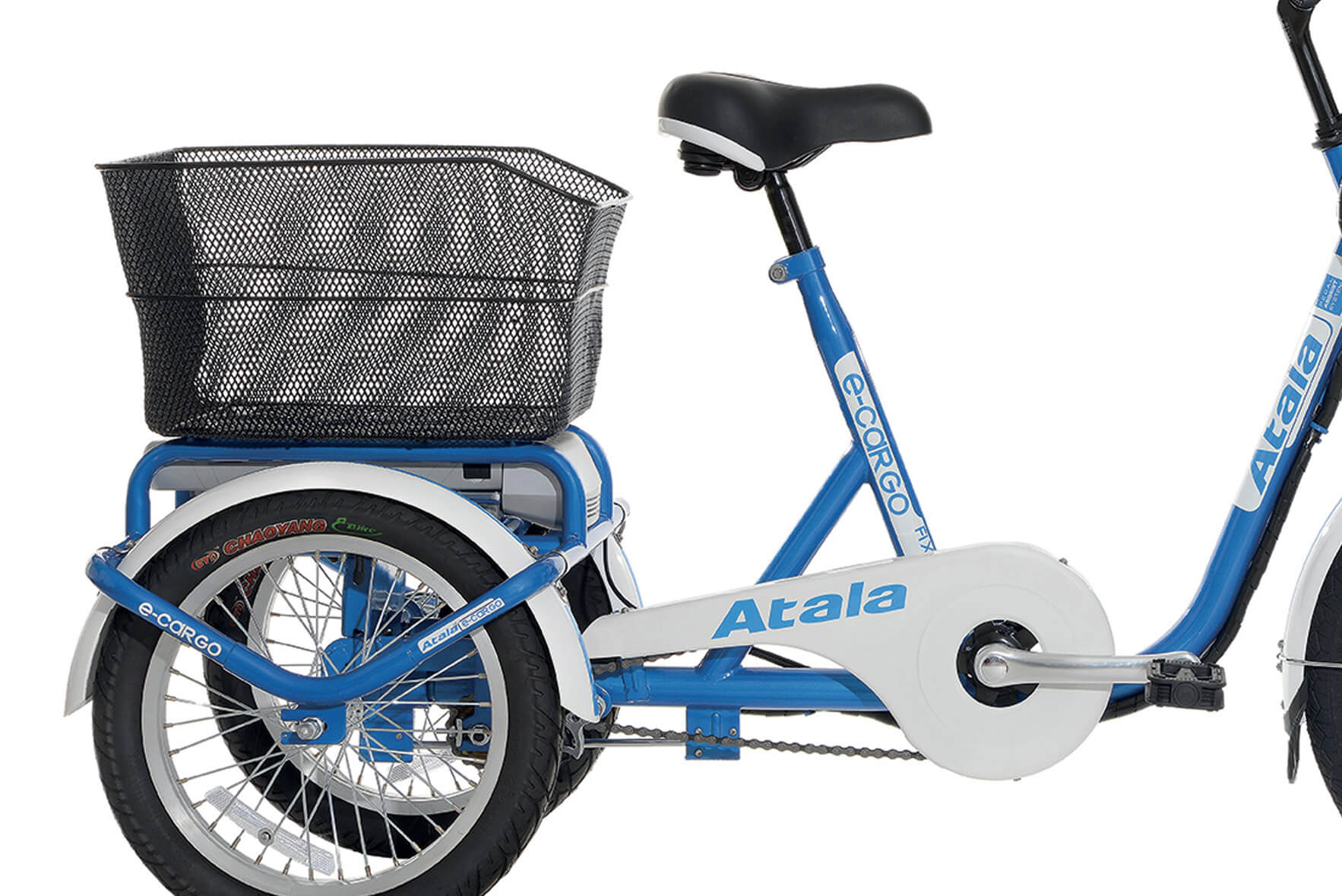

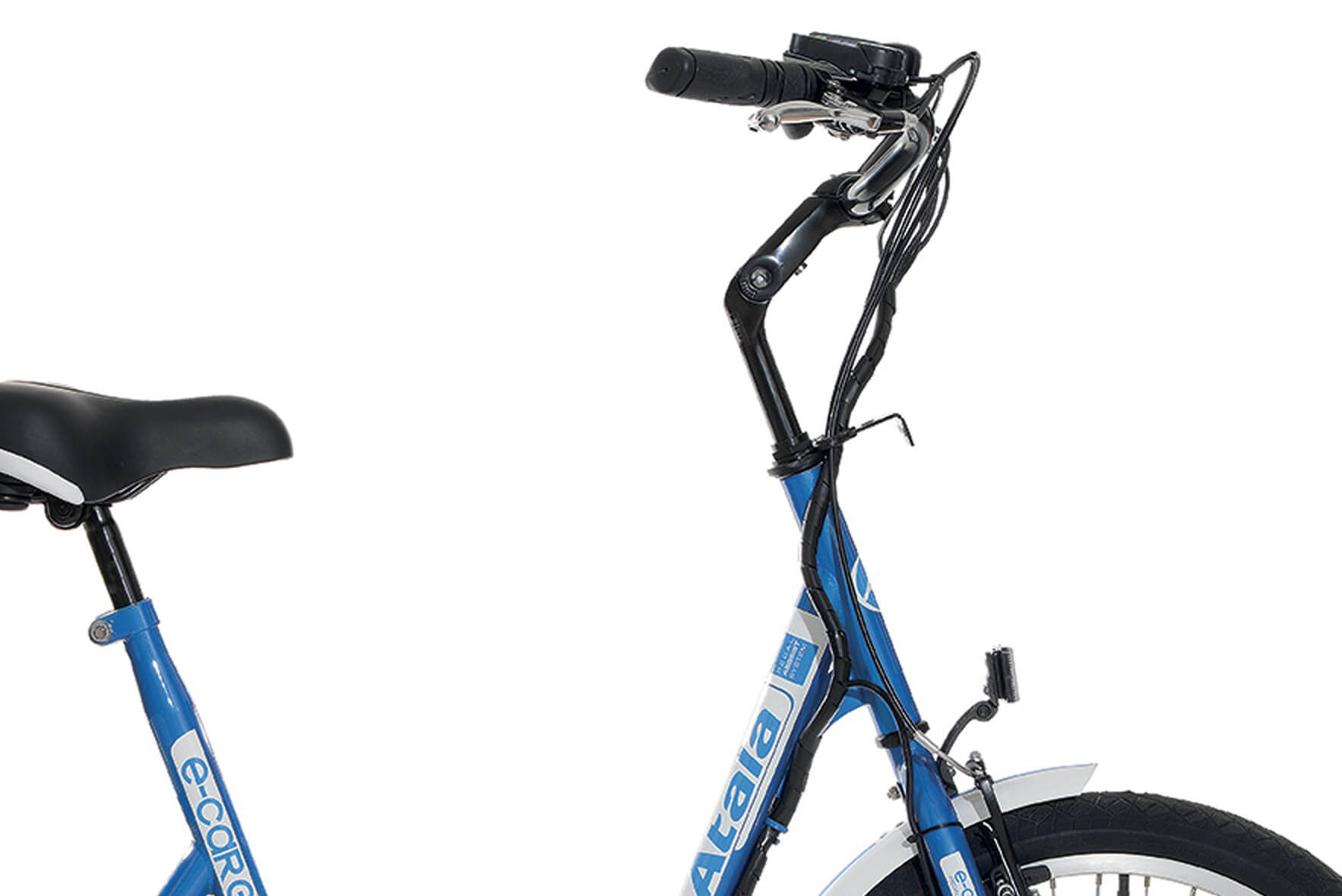

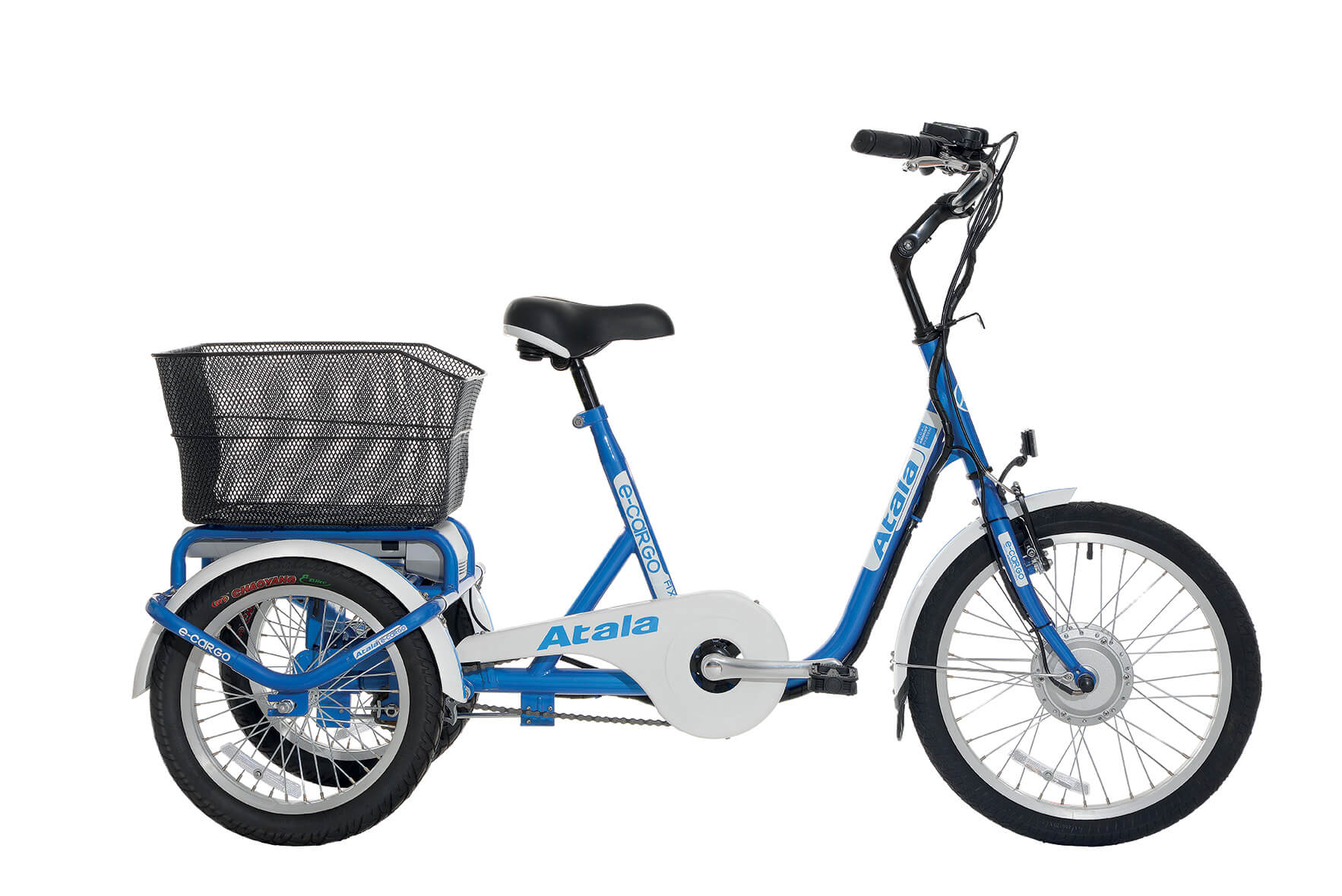

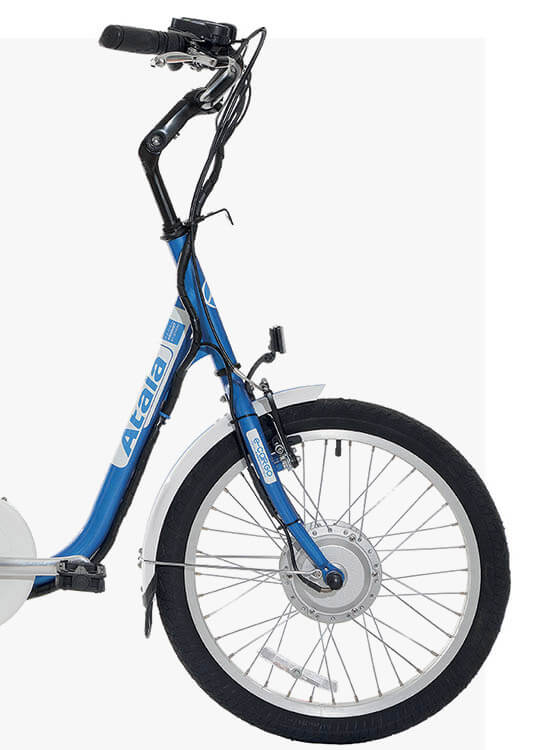

Atala E-Cargo 4

E-Cargo

Brand

Atala

Electric Kit

EcoLogic 45Nm/Speed Smart

Colors

Blue

Size

42 cm

Mechanical specifications

Frame Hi-Ten Tig Easy Access, Fix-Flex system
Fork Hi-Ten Tig 20”
Steering Steel 1”, threaded
Crankset Alu, 44T
Brakes Front: Promax alu, V-Brake con stazionamentoRear: Drum
Free wheel 16T
Pedals Resin TKK
Hubs Front: MotorRear: Cargo special
Circles Front: 20" alu, 36hRear: 16" alu 36h
Handlebar mount Alu, adjustable
Handlebar fold Steel City
Seat support Alu, 25,4mm
Seat Trekking with elastomers
Covers Front: 20”x1,95”Rear: 16”x2,125”
Fenders Steel painted
Chain guard Steel painted, L type

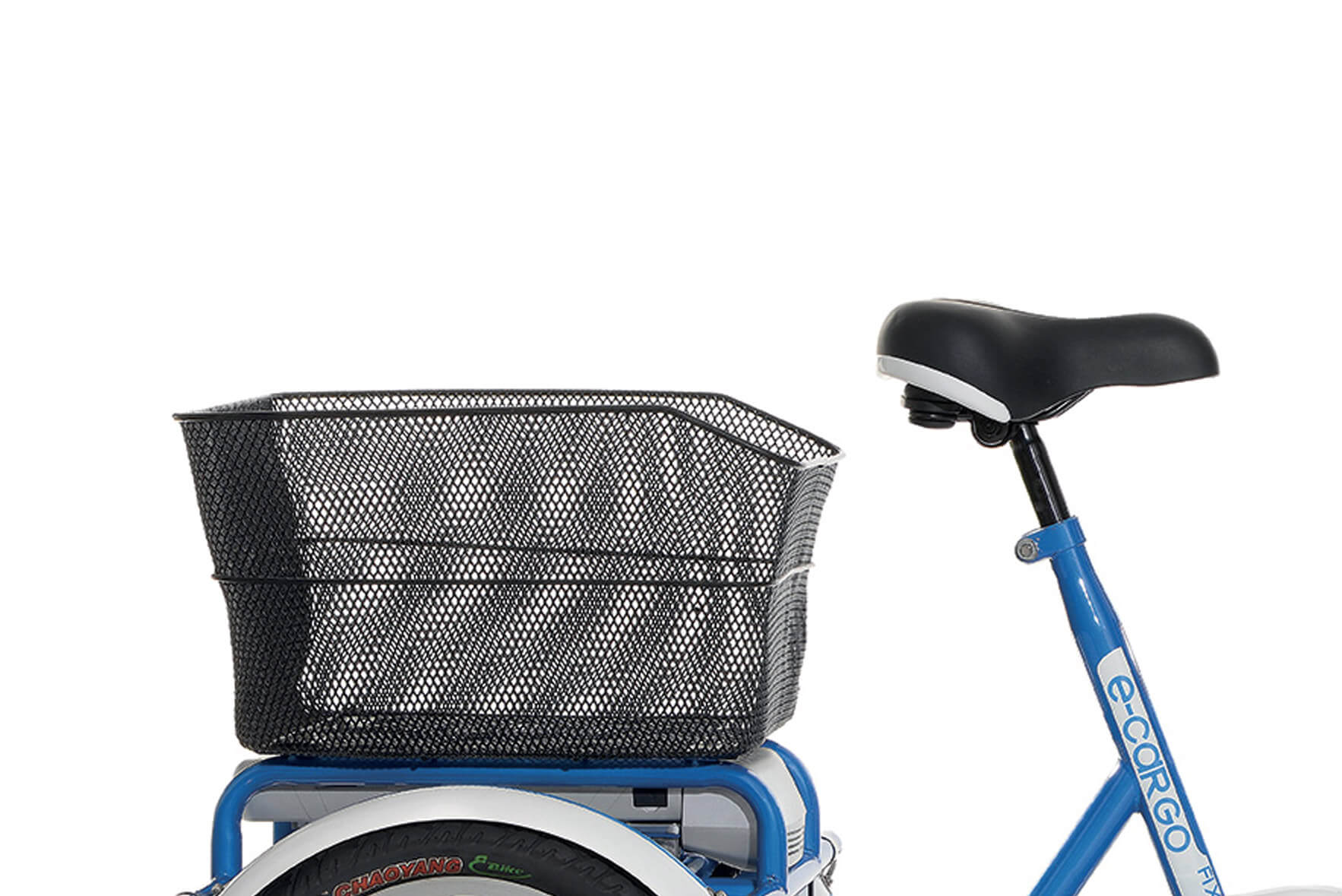

Rack Big rear basket 30L
Size 42 cm
Color Blue

Elettrical Specifications

Maximum torque 25Nm
Sensor type Speed sensor
Battery 418
Autonomy Up to 60 km
Battery charger type 2 A
Charger time 100%: 6h30m / 80%: 4h30m
Assisted max speed 25km/h
Display Atala A790, with LED, On-Off, Power
Power 3 levels, Speed adjust

Geometry


Atala E-Cargo geometrie Atala E-Cargo geometrie
