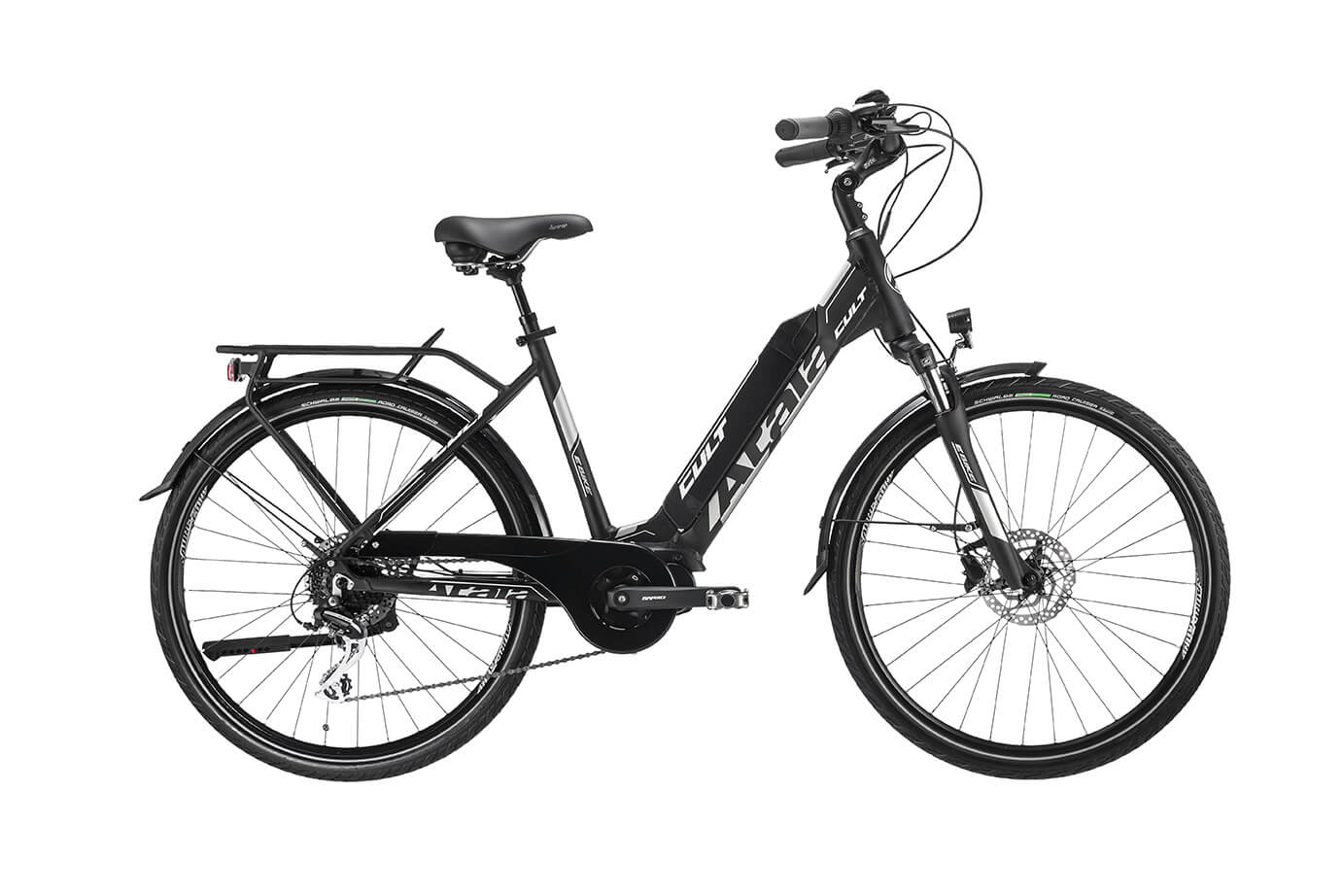

Atala Cult EVO SL 4

Cult EVO SL

Brand

Atala

Electric Kit

Atala AM80 Agile

Colors

Black/Silver Matt

Size

45 cm

Mechanical specifications

Frame Alu. Hydroformed 26", integrated battery, integrated carrier, internal cables
Fork Suntour NEX 26", alu with alu crown, 50mm
Steering FSA integrted 1”1/8
Crankset AM80 alu crank arm, Miche 38T
Change Shimano Acera RD-M360
Commands Shimano Tourney SL-RS45 RevoShift, 8s
Brakes Shimano BR-MT200 hydraulic disc, Rotor 180 mm CL
Sprocket set Shimano HG200 8s 12-32
Pedals Alu TKK
Hubs Shimano TX505 32h, CL, quick release
Circles Rodi 26", double wall w/eylets, 32h, disc
Handlebar mount Byte alu over, ahead, adjustable
Handlebar fold Byte aly over, City
Seat support Byte suspended 40mm, 27,2mm
Seat Selle Royal Aurorae w/elastomer
Covers Schwalbe Road Cruiser 26”x1,75”, with reflecting line, puncture proof
Fenders Single stay safety-clip
Chain guard Plastic, L type
Rack Integrated with frame, 25kg load
External lights Axa front (15 lux) and rear LED, controlled by display and twilight sensor
Size 45 cm
Color Black/Silver Matt

Elettrical Specifications

Maximum torque 80 Nm
Sensor type Torque
Battery 504
Autonomy level1: up to 170kmlevel2: up to 110kmlevel3: up to 85kmlevel4: up to 80kmlevel5: up to 65km
Battery charger type 2 A
Charger time 100%: 7:30h / 80%: 5h40m
Assisted max speed 25 km/h
Display Atala A10 LCD Smart CAN, with remote control
Power 5 levels, Power adjustlevel1: 50%level2: 100%level3: 150%level4: 200%level5: 250%

Colours, sizes and codes

Geometry


Atala Cult EVO SL geometrie Atala Cult EVO SL geometrie
