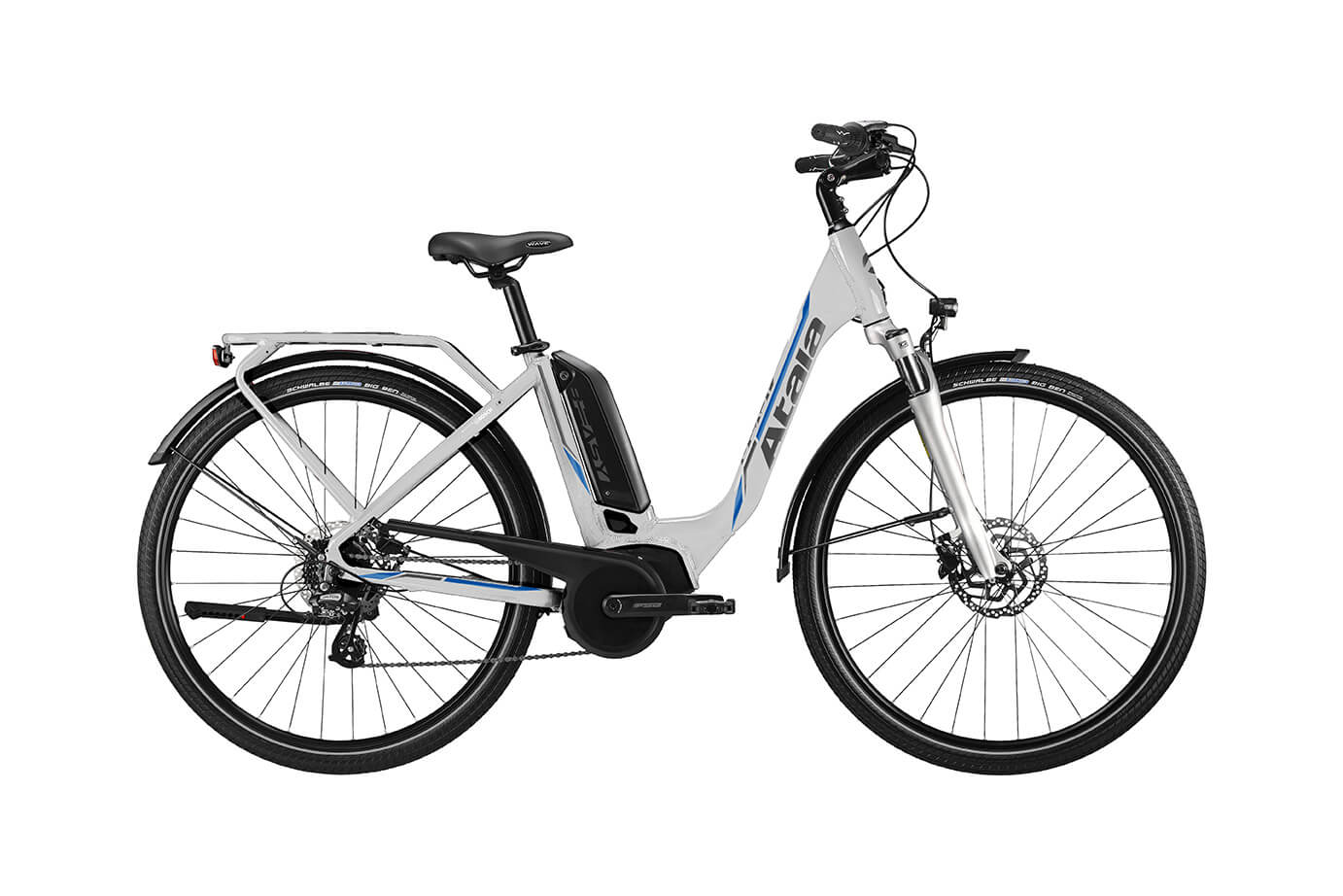

Atala B-Easy S 4

B-Easy S

Brand

Atala

Electric Kit

Bosch Active Plus Cruise

Colors

Ultralight/Blue

Size

45 – 50

Mechanical specifications

Frame Alu 700C, hydroformed, easy access, custom tubing, Integrated carrier, Internal routing, Forged interface
Fork Suntour NEX, 63 mm, Coil
Steering FSA No.10, semi-integrated, 1”1/8
Crankset FSA, 38T
Change Shimano Altus RD-M310
Commands Shimano Tourney SL-RS45, Revoshift, 8s
Brakes Shimano BR-MT200, Rotor SM-RT10 180 mm/180 mm
Sprocket set Shimano CS-HG200 8s 11/32
Pedals Alu TKK
Hubs Shimano TX505, CL, 32h
Circles Rodi Blackrock23, 23x622, 32h, eBike ready
Handlebar mount Ahead Adjustable, Bar bore 25,4 mm
Handlebar fold Alu City, 630 mm
Seat support Alu, 31,6 mm
Seat Selle Royal Wave RVS
Covers Schwalbe Big Apple, K-Guard, Relfex, 700x50
Fenders SKS A65R
Chain guard SKS Chainbow
Rack Alu integrated
External lights F: Axa CompactLine LED 20 LuxR: Axa BlueLine LED Lightguide
Size 45 – 50
Color Ultralight/Blue

Elettrical Specifications

Maximum torque 50 Nm
Sensor type Torque
Battery 300
Battery charger type 2 A
Charger time Up to 5 hours
Assisted max speed 25 km/h
Display PURION
Power Eco: 40 %Tour: 100 %Sport: 180 %Turbo: 270 %

Colours, sizes and codes

Geometry


Atala B-Easy S geometrie Atala B-Easy S geometrie
