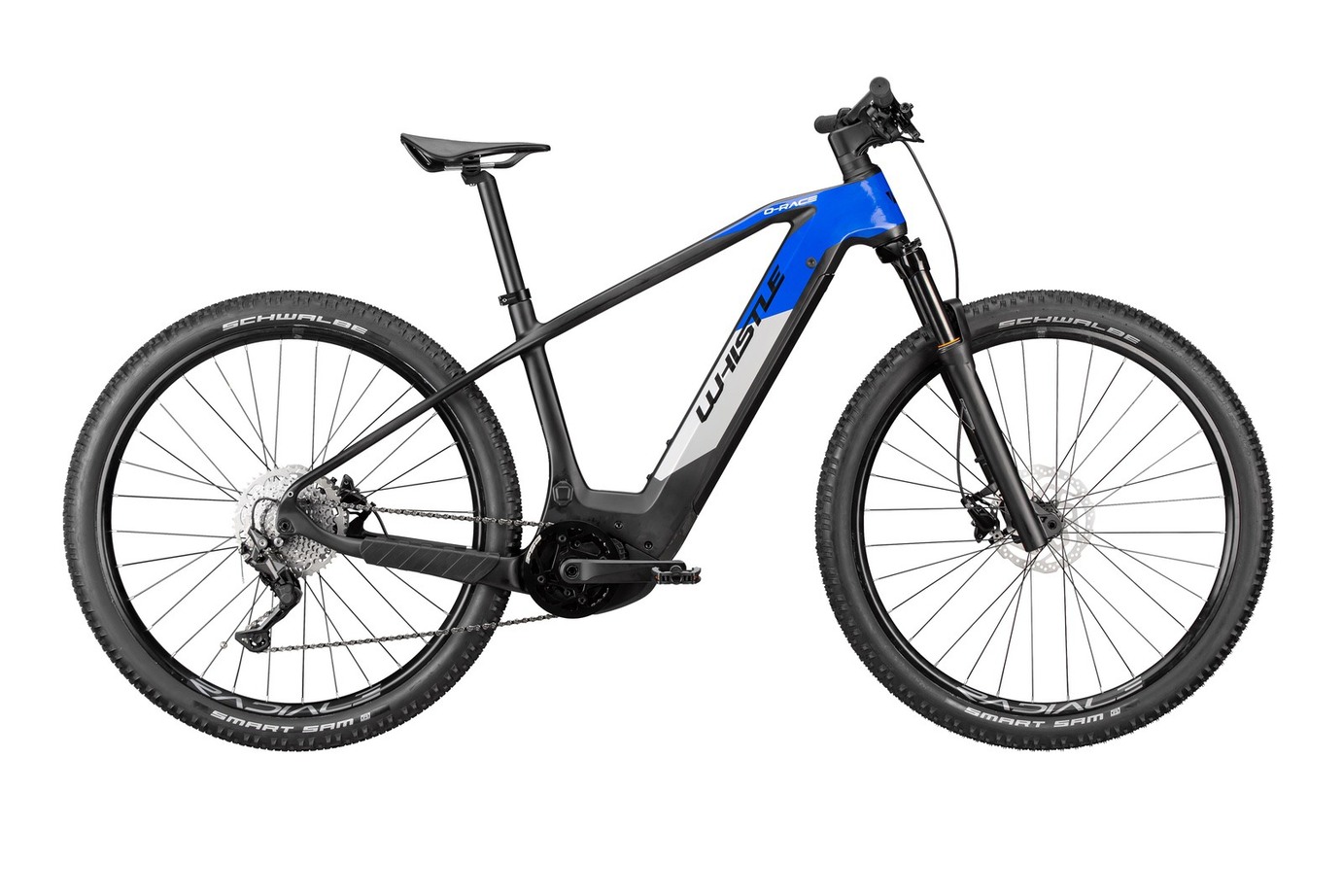

Atala O-Race C7.4 2

O-Race C7.4

Marchio

Whistle

Kit Elettrico

OLI Edge

Colori

Carbon/Blu Carbon/Red

Taglie

40 46 50

Specifiche meccaniche

Telaio Full Carbon 29”, Toray T700, Integrated battery, Tapered, Integrated cables,12x148 mm E-Thru
Forcella RST Vibe TNL, 120 mm, 15x110, 1.5 Tapered, Lockout / Sunotur XCR34, Coil, Lockout, Travel 120 mm, 1.5 Tapered ,15x110 mm, remote
Serie sterzo Acros for Viper, 1.5”, Internal routing
Guarnitura FSA, 34T, Megatooth
Cambio Shimano Deore RD-M4100 SGS, Shadow Plus, 10s
Comandi Shimano Deore SL-M4100 Rapidfire-Plus, 10s
Freni Shimano BR-MT200, Rotor SM-RT30 180 mm/180 mm
Pacco pignoni Shimano CS-M1100 10s 11/46
Pedali Alu MTB
Mozzi F: Shimano TC500B, 15x110, CL, 32h // Glory Wheel, 15x110, CL, 32h R: Shimano TC500B, 12x148, CL, HG, 32h // Glory Wheel, 12x148, CL, HG, 32h
Cerchi RADIALE E25, eBike Ready, Tubeless Ready, 622x25c
Attacco manubrio Satori Viper0, Barbore 31,8 mm, Internal routing
Piega manubrio Alu, 720 mm, 31,8 mm, Rise 25 mm
Reggisella Alu 31,6 mm
Sella Selle Royal Sauris
Coperture Schwalbe Smart Sam, Performance, Addix, 29”x2,35”
Taglia 40 46 50
Colore Carbon/Blu Carbon/Red

Specifiche elettriche

Coppia massima 90 Nm
Tipo sensore Torque
Batteria Phylion BN21L 603Wh
Tipo caricabatteria 2 A
Tempo di ricarica Up to 9 hours
Velocità max assistita 25 km/h
Display OLI High Vision
Potenza Mode 1: 120% Mode 2: 180% Mode 3: 230% dynamic Mode 4: 400% dynamic

Geometrie


Atala O-Race C7.4 geometrie Atala O-Race C7.4 geometrie
