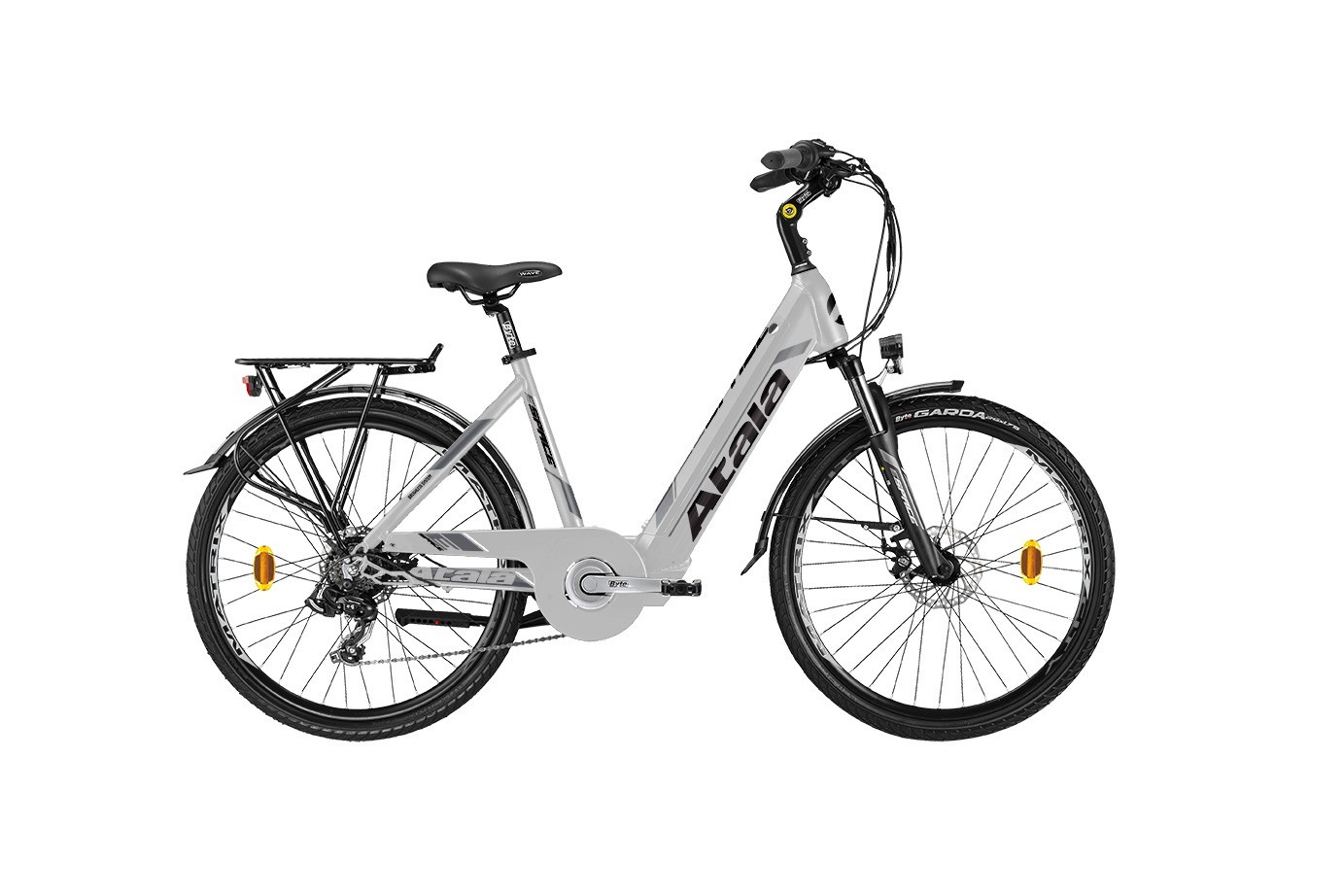

E-SPACE 7.1 26″

EcoLogic 35Nm/Speed Smart

Ultralight/Black

Telaio	Alu. 26", easy access, integrated battery, integrated HT, disc brake, internal cables
Forcella	Suntour NEX 26", alu with alu crown, 50mm o Zoom 187D, 26”, 60 mm, Coil
Serie sterzo	FSA integrated 1”1/8
Guarnitura	Byte steel 42T cartridge, with cap
Cambio	Shimano Tourney RD-TY500
Comandi	Tektro Aries MD-M300, Mechanic disk, Rotor 160 mm, with brake lever switch
Freni	Shimano Tourney SL-RS35 RevoShift, 7s
Ruota Libera	Shimano Tourney 7s 14-28
Pedali	Resin City
Mozzi	Shimano quick release front, motor on rear, 36h, INT
Cerchi	Beretta 26" alu, double wall w/eylets, 36h, disc
Attacco manubrio	Byte alu, adjustable
Piega manubrio	Byte steel City
Reggisella	Byte alu with clamp, 27,2mm
Sella	Selle Royal Wave
Coperture	Byte Garda 26”x1,75”
Parafanghi	Single stay speedy
Copricatena	Steel painted, L type
Portapacchi	Rear steel 10mm with spring, 25kg load
Luci esterne	Axa front (15 lux) and rear LED, controlled by display
Taglia	45
Colore	Ultralight/Black
Note	kickstand Ursus adjustable, bell, wheel reflectors

Coppia massima	35 Nm
Tipo sensore	Speed sensor w/12 pulses
Batteria	360
Tipo caricabatteria	2A Europlug
Tempo di ricarica	100%: 6h4m / 80%: 4h27m
Velocità max assistita	25km/h
Display	Atala A15 LED UART
Potenza	5 levels, Speed/Torque adjust
Altre funzioni	Soft start: 0 - 6km/h, with no pedalingExternal light control
