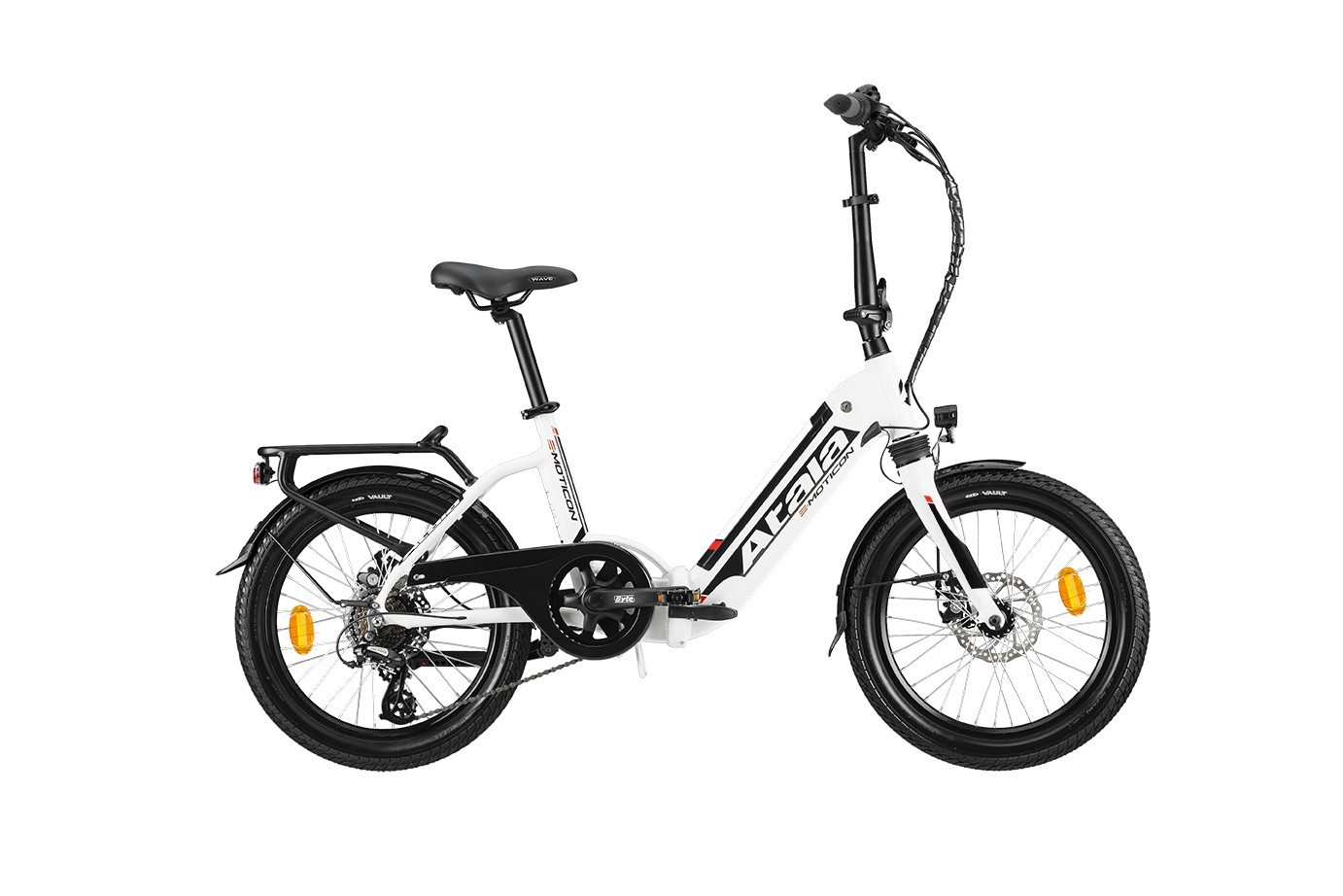

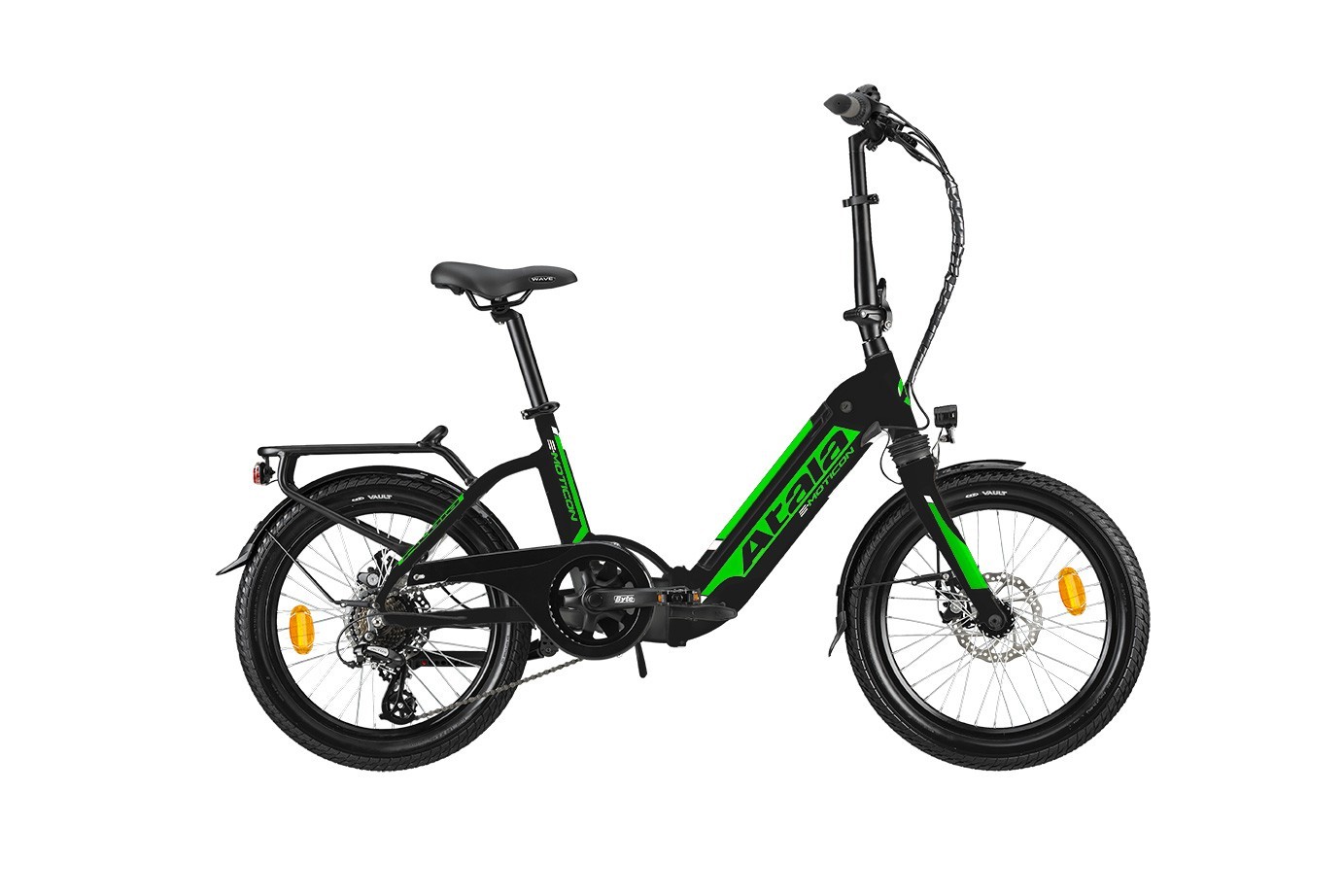

E-MOTICON 6V

EcoLogic 35Nm/Speed

White/Neon Red Black/Neon Green Matt

Telaio	Alu 20”, foldable, integrated battery, easy access, disc, integrated cables
Forcella	HL CH-106D monoshock 20", alu, 25mm
Serie sterzo	FSA integrated 1”1/8
Guarnitura	Byte alu 152mm, 42T, cartridge
Cambio	Shimano Tourney RD-TZ500
Comandi	Shimano Tourney SL-RS36 RevoShift, 6s
Freni	Tektro Aries MD-M300, Mechanic disk, Rotor 160 mm, with brake lever switch
Ruota Libera	Shimano Tourney 6s 14-28
Pedali	Resin foldable
Mozzi	Shimano quick release front, motor on rear, 36h, INT
Cerchi	Rodi 20", double wall w/eylets, 36h, disc
Attacco manubrio	Alu, foldable, adjustable, ahead
Piega manubrio	Alu, 20mm rise
Reggisella	Alu with clamp, 30,9mm
Sella	Selle Royal Wave
Coperture	20”x2,40” front, 20''x2,20'' rear, city
Parafanghi	Single stay speedy
Copricatena	Plastic, L type
Portapacchi	Alu rear carrier with spring
Luci esterne	Axa front (15 lux) and rear LED, controlled by display
Taglia	35
Colore	White/Neon Red Black/Neon Green Matt
Note	kickstand Ursus adjustable, bell, wheel reflectors

Coppia massima	35Nm
Tipo sensore	Speed sensor w/12 pulses
Batteria	460
Tipo caricabatteria	2A Europlug
Tempo di ricarica	100%: 7h36m / 80%: 5h45m
Velocità max assistita	25km/h
Display	Digit LED UART
Potenza	5 levels, Speed/Torque adjust
Altre funzioni	Soft start: 0 - 6km/h, with no pedalingExternal light control
