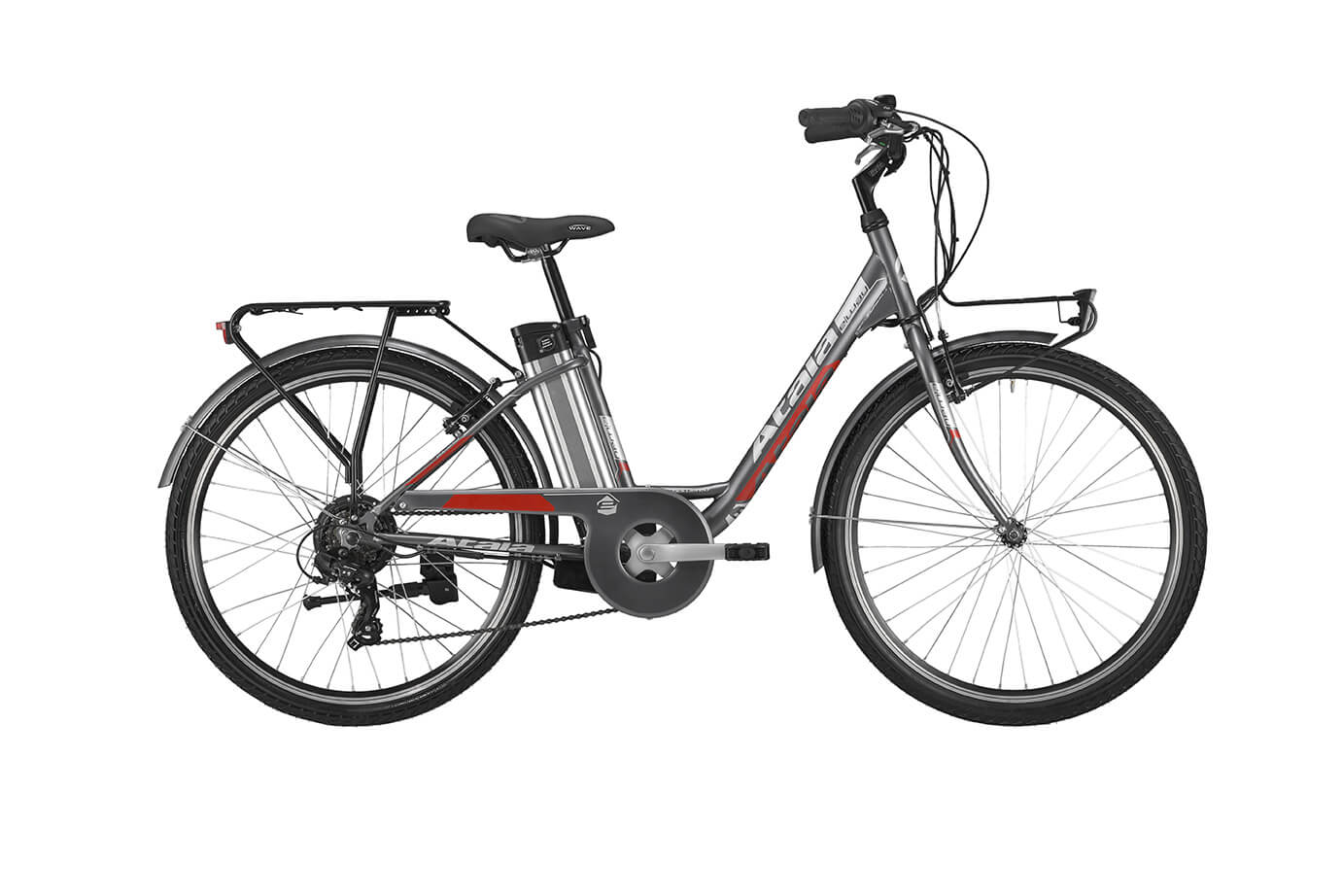

Atala E-Way 24volt 4

E-Way 24volt

Brand

Atala

Electric Kit

EcoLogic 45Nm/Speed Smart

Colors

Anthracite/Red Matt

Size

42 cm

Mechanical specifications

Frame Hi-Ten Tig 26", easy access, internal cables
Fork Hi-Ten Tig 26”
Steering Steel 1”1/8, threaded, with cap
Crankset Byte steel 42T cartridge, with cap
Change Shimano Tourney RD-TZ50
Commands Shimano Tourney SL-RS35 RevoShift, 6s
Brakes Promax alu, V-Brake
Free wheel Shimano Tourney 6s 14-28
Pedals Resin City
Hubs Alu 36h, Shimano front, motor on rear
Circles Beretta 26" alu, double wall w/eylets, 36h
Handlebar mount Alu
Handlebar fold Byte steel City
Seat support Alu, 25,4mm
Seat Selle Royal Wave
Covers Byte Garda 26”x1,75”
Fenders Steel painted
Chain guard Steel painted, L type
Rack Rear carrier, 25kg / front carrier
External lights Front and rear LED, with battery
Size 42 cm
Color Anthracite/Red Matt

Elettrical Specifications

Maximum torque 20Nm
Sensor type Speed sensor w/7 pulses
Battery 337
Autonomy Up to 50km
Battery charger type 2 A
Charger time 100%: 7h / 80%: 5h30m
Assisted max speed 25km/h
Display Atala A320, with LED, Power +/-
Power 3 levels, Speed adjust

Geometry


Atala E-Way 24volt geometrie Atala E-Way 24volt geometrie
