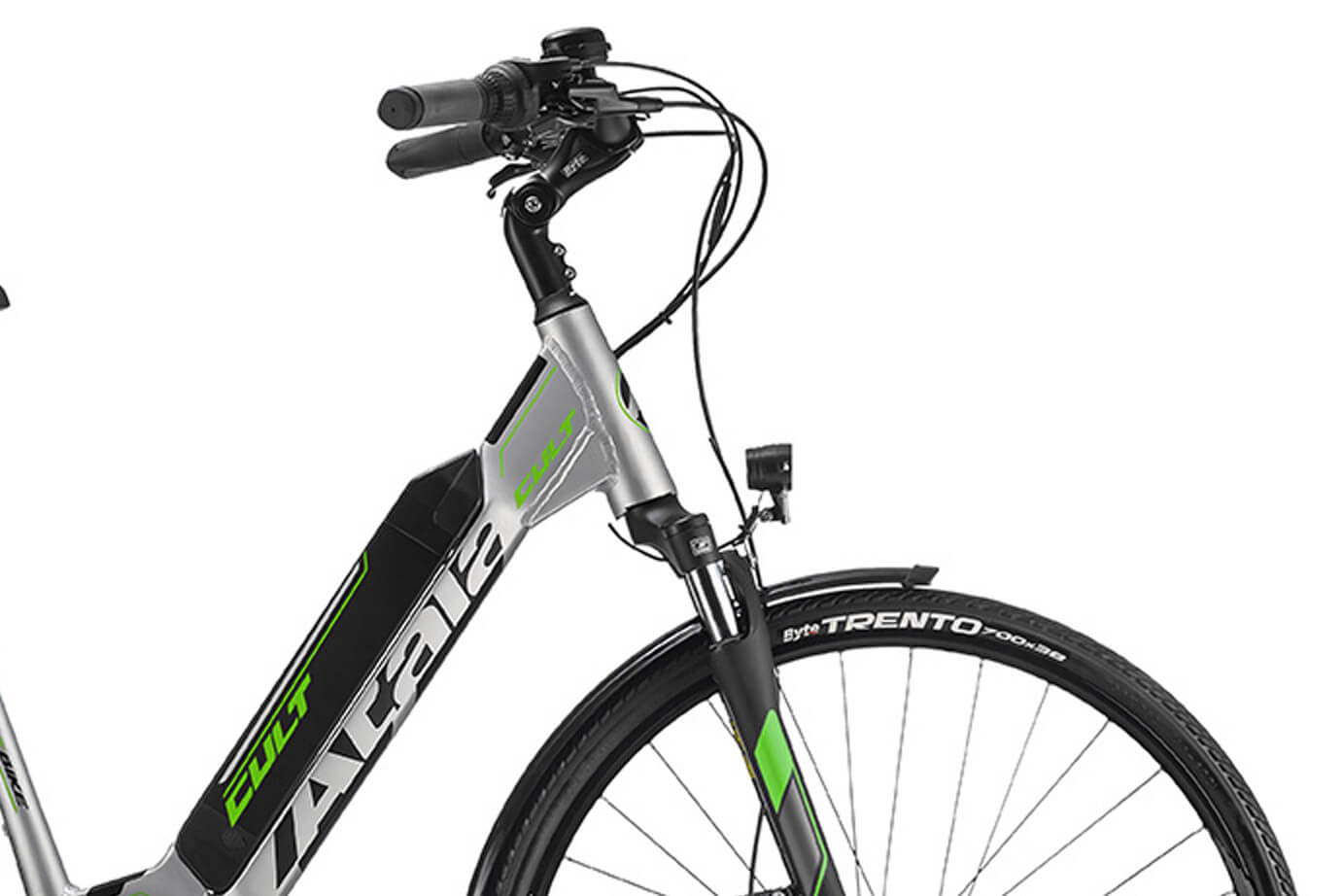

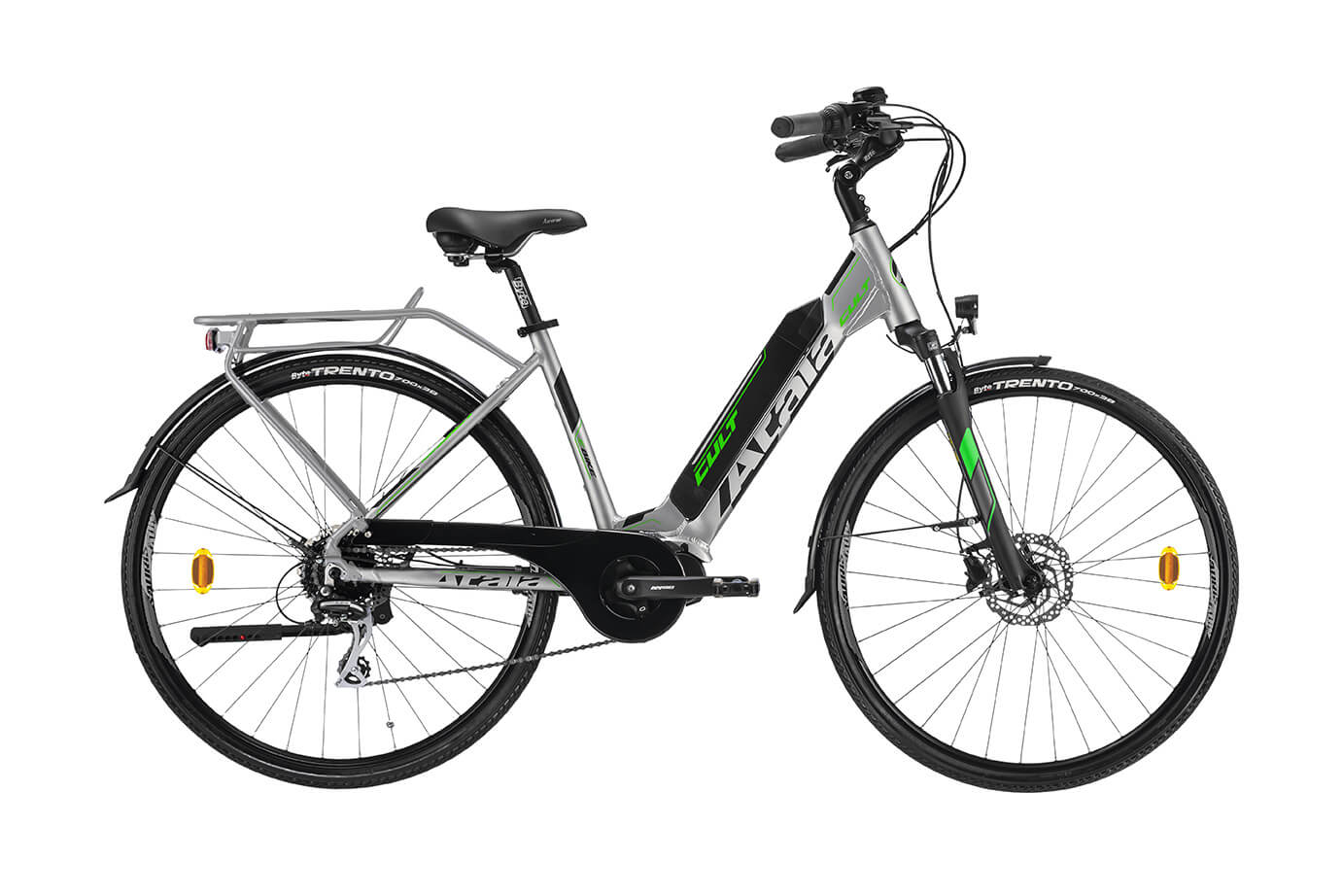

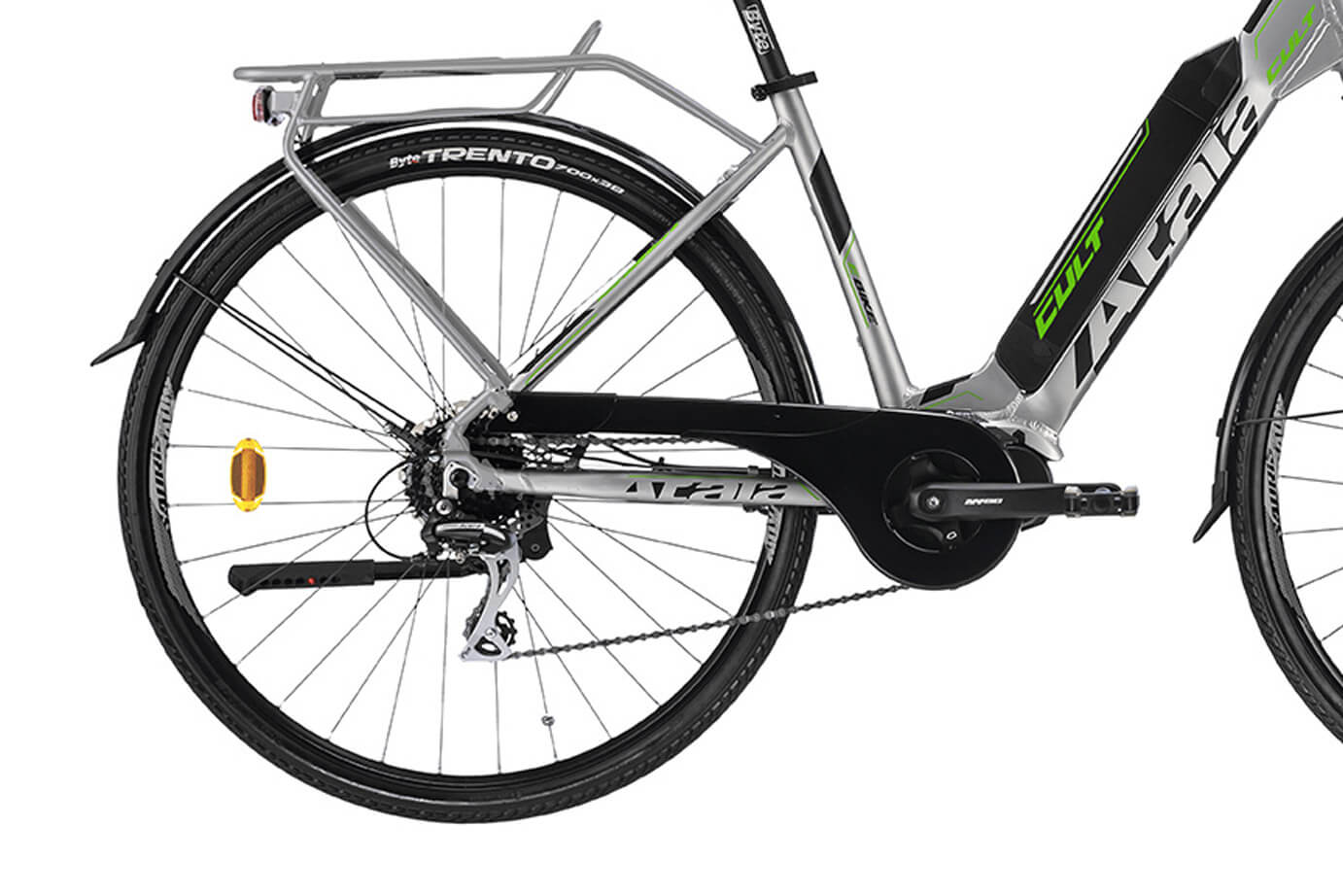

Atala Cult EVO S28 4

Cult EVO S28

Brand

Atala

Electric Kit

Atala AM80 Agile

Colors

Ultralight/Neon Green Matt

Size

45 cm

Mechanical specifications

Frame Alu. Hydroformed 700c, integrated battery, integrated carrier, internal cables
Fork Suntour NEX 700c, alu with alu crown, 50mm
Steering FSA integrted 1”1/8
Crankset AM80 alu crank arm, Miche 38T
Change Shimano Altus RD-M310
Commands Shimano Tourney SL-RS35 RevoShift, 7s
Brakes Shimano BR-MT200 hydraulic disc, Rotor 160 mm INT
Sprocket set Shimano HG200 7s 12-32
Pedals Resin antislip
Hubs Shimano TX505 32h, CL, quick release
Circles Rodi 700c, double wall w/eylets, 32h, disc
Handlebar mount Byte alu over, ahead, adjustable
Handlebar fold Byte aly over, City
Seat support Byte alu with clamp, 27,2mm
Seat Selle Royal Aurorae w/elastomer
Covers Byte Trento 700x38c
Fenders Single stay safety-clip
Chain guard Plastic, L type
Rack Integrated with frame, 25kg load
External lights Axa front (15 lux) and rear LED, controlled by display and twilight sensor
Size 45 cm
Color Ultralight/Neon Green Matt

Elettrical Specifications

Maximum torque 80 Nm
Sensor type Torque
Battery 418
Autonomy level1: up to 140kmlevel2: up to 90kmlevel3: up to 70kmlevel4: up to 65kmlevel5: up to 55km
Battery charger type 2 A
Charger time 100%: 6:30h / 80%: 4h40m
Assisted max speed 25 km/h
Display Atala A10 LCD Smart CAN, with remote control
Power 5 levels, Power adjustlevel1: 50%level2: 100%level3: 150%level4: 200%level5: 250%

Colours, sizes and codes

Geometry


Atala Cult EVO S28 geometrie Atala Cult EVO S28 geometrie
