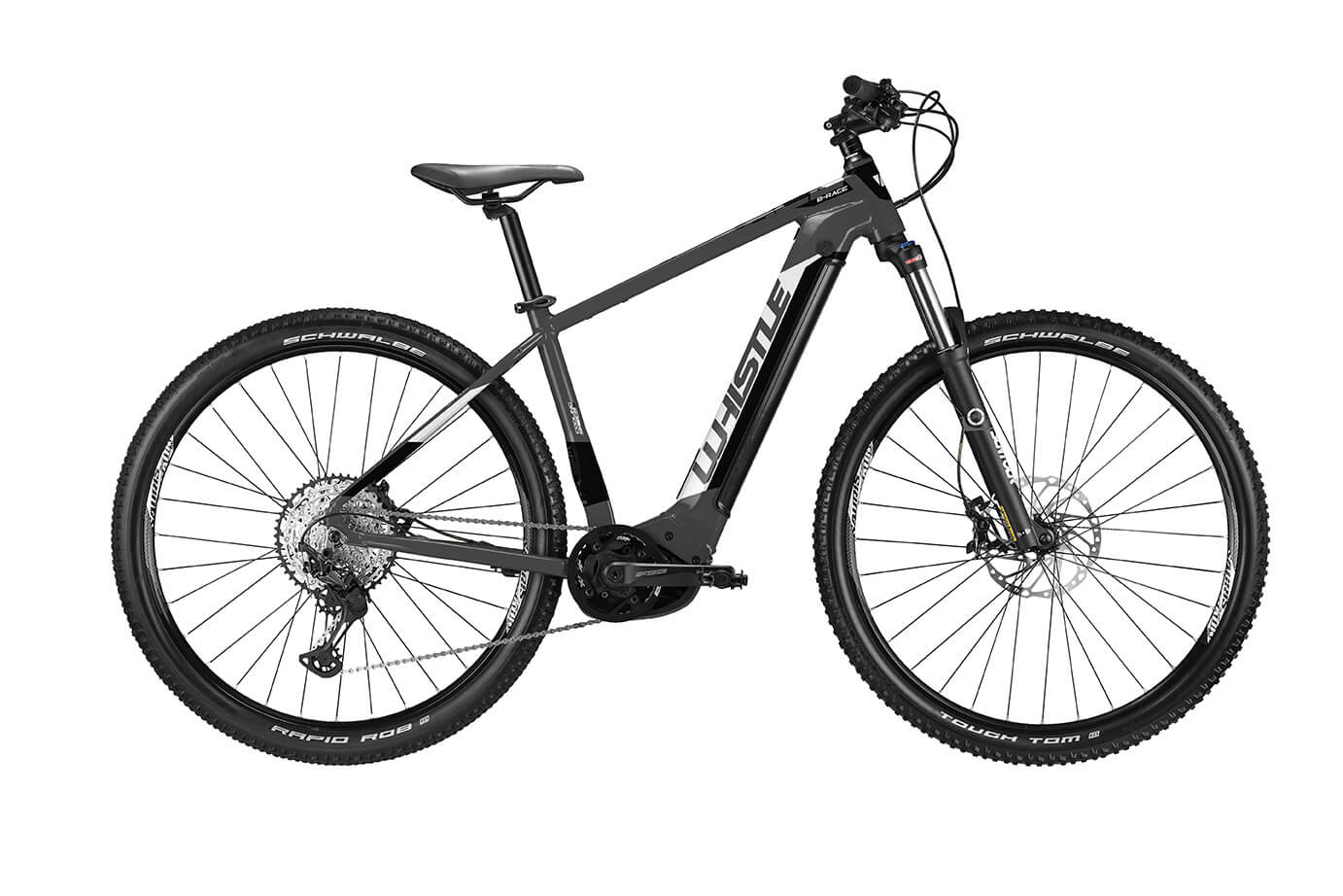

Atala B-Race SL 4

B-Race SL

Brand

Whistle

Electric Kit

Bosch Performance CX Cruise

Colors

Anthracite/White/Black Matt

Size

16” - 18” - 20”

Mechanical specifications

Frame Alu 29”, hydroformed, integrated battery, tapered, Internal routing, Forged interface
Fork Suntour XCR32, 120 mm, 15x110 mm, Coil, Tapered, Lockout
Steering FSA No.57B tapered 1"1/2
Crankset FSA, Miche 34T
Change Shimano XT RD-M8100 SGS, Shadow Plus
Commands Shimano SLX SL-M7100 Rapidfire-Plus, 12s
Brakes Shimano SLX BR-M7120, Four piston, Rotor SM-RT64 203 mm/180 mm
Sprocket set Shimano CS-M7100 12s 10/51
Pedals Alu MTB
Hubs Shimano Alivio MT400, 15x110 mm/MT500, 12x148 mm, CL, 32h
Circles Rodi Blackrock23, 23x622, 32h, eBike ready
Handlebar mount Alu, Bar bore 31,8 mm
Handlebar fold Alu Low Rise, 720 mm
Seat support Alu 31,6 mm
Seat Selle Royal Sauris
Covers F: Schwalbe Tough Tom, R: Schwalbe Rapid Rob, 29”x2,25”
Size 16” - 18” - 20”
Color Anthracite/White/Black Matt

Elettrical Specifications

Maximum torque 75 Nm
Sensor type Torque
Battery 625
Battery charger type 2 A
Charger time Up to 9 hours
Assisted max speed 25 km/h
Display PURION
Power Eco: 60 %Tour: 140 %EMTB: 140 / 340 %Turbo: 340 %

Geometry


Atala B-Race SL geometrie Atala B-Race SL geometrie
